ATS UPVC SWR Pipes
Premium quality Soil, Waste & Rainwater drainage systems. Designed for efficient, leak-proof, and blockage-free flow in modern plumbing infrastructures.
Engineered for Efficient Drainage Systems
ATS UPVC SWR Pipes & Fittings are designed for robust performance in residential, commercial, and industrial buildings. Manufactured from high-quality UPVC material, these pipes provide excellent corrosion resistance and a long service life.
The remarkably smooth inner surface ensures rapid drainage and significantly reduces the chances of blockage, while the lightweight construction allows for quick and labor-saving installation.
Manufacturing Standards
Smooth Flow
Corrosion Resistant
Easy Installation
Leak-Proof Joints

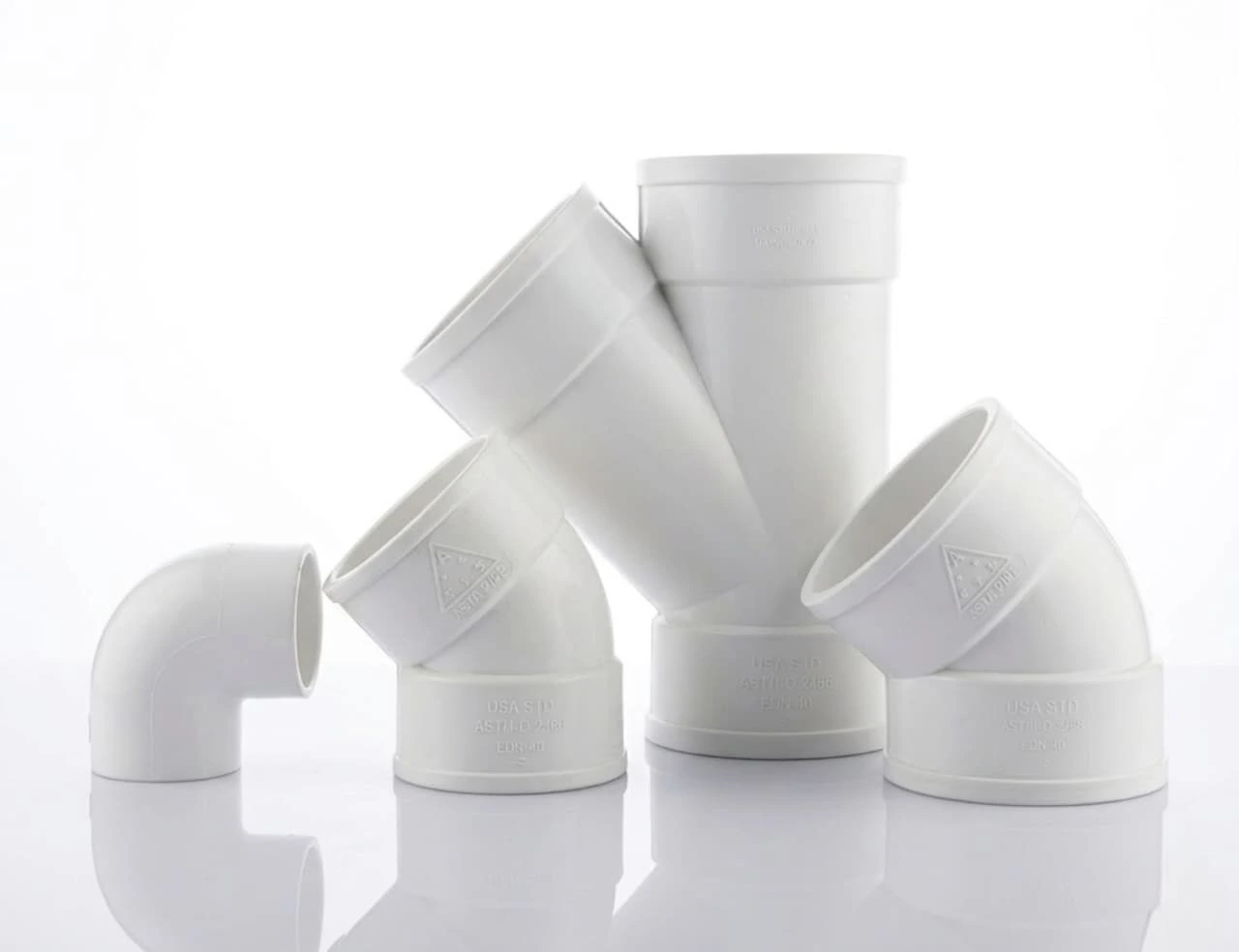

Complete SWR Range
From high-strength pipes to precision-molded fittings, ATS provides everything you need for a complete, leak-proof drainage network.

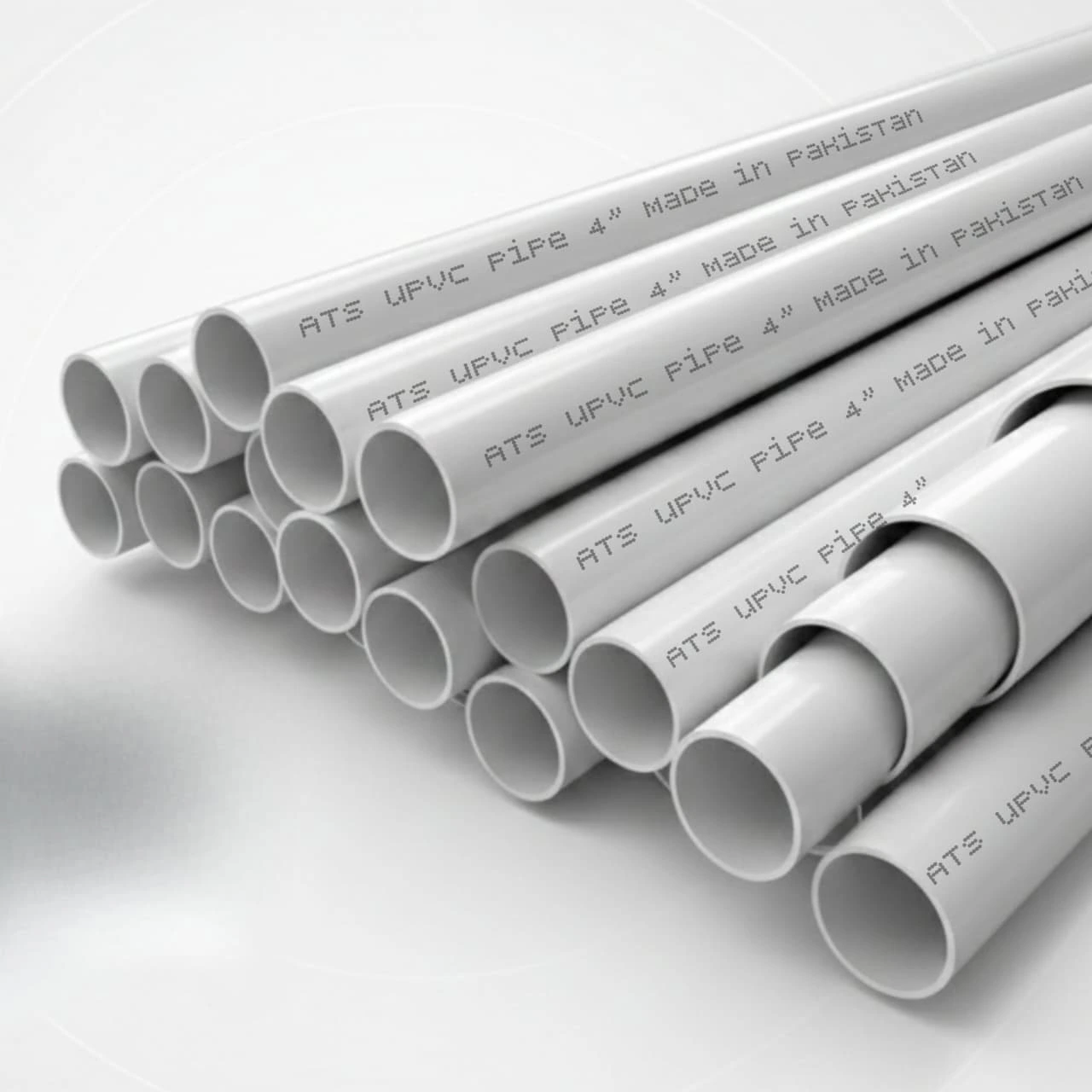

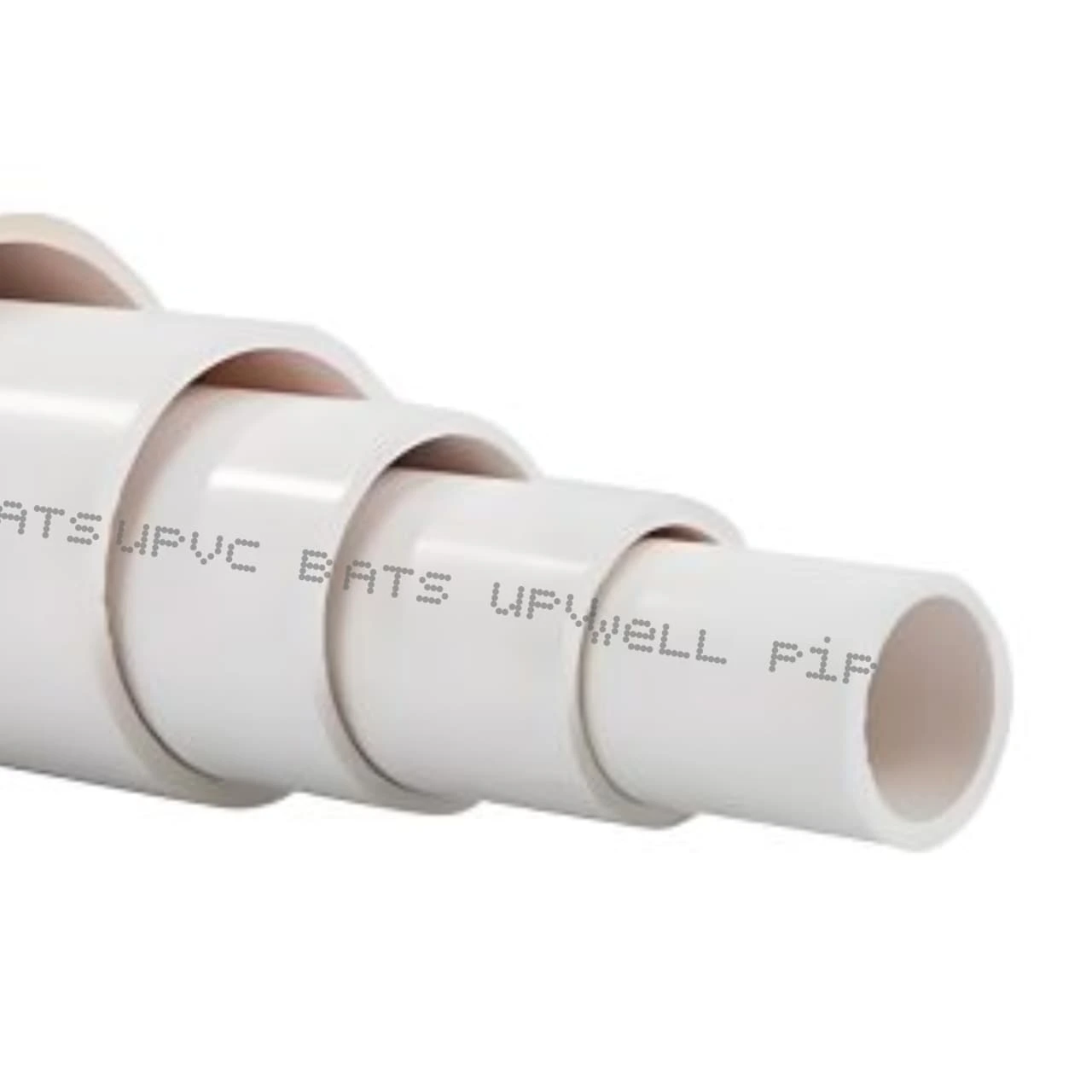

SWR UPVC Pipes
Available from 2" to 24" in various pressure classes.

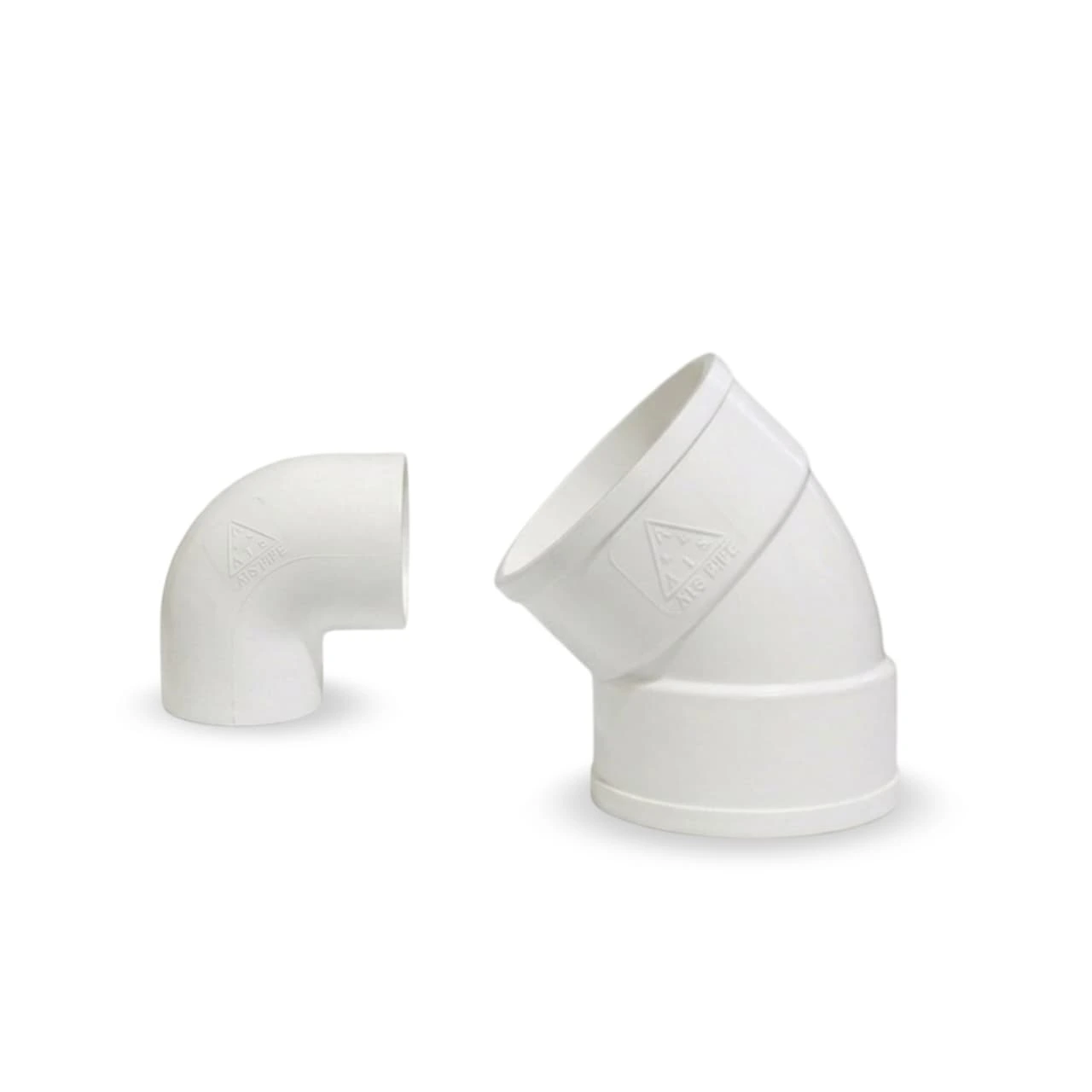

Elbows & Bends (45°/90°)
For smooth directional changes in drainage flow.
Plain & Door Tees
Branch connections with optional cleaning doors.
Y-Branches (Wyes)
For angled line connections ensuring optimal flow.
Reducers
Seamlessly connect pipes of different diameters.

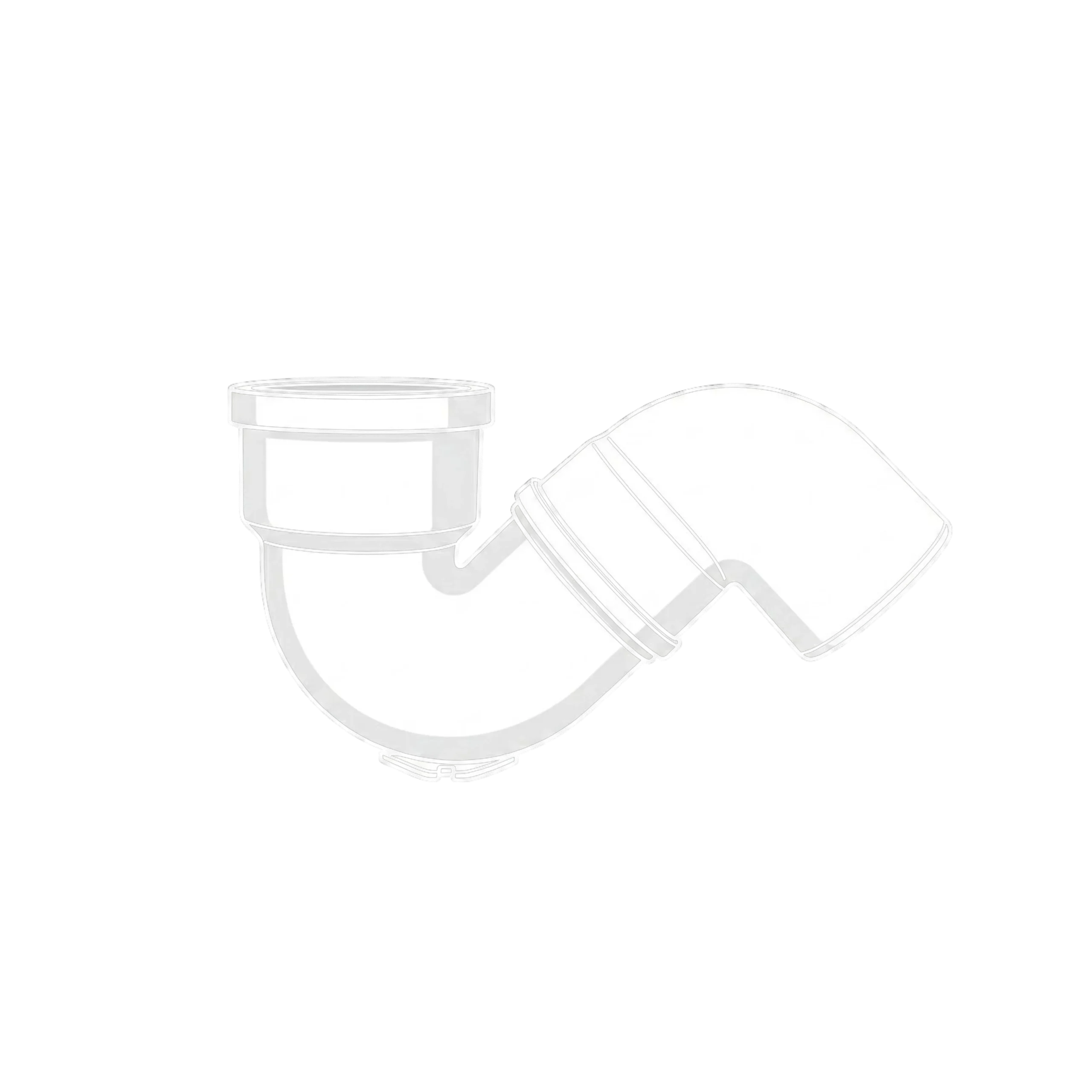

P-Traps & Floor Traps
Water seal traps to prevent foul odor backflow.
Vent Cowls
Installed at pipe ends to allow ventilation & prevent debris.
Couplers / Sockets
For secure and leak-proof joining of two pipes.
UPVC SWR PIPES - BS EN 1329 (Inside Building)
| Nominal Size (Inches) | Nominal OD (mm) | Wall Thickness Specification | |||
|---|---|---|---|---|---|
| Type B (Above Ground) | Type BD (Above & Below) | ||||
| Min (mm) | Max (mm) | Min (mm) | Max (mm) | ||
| 2" | 50 | 1.8 | 2.2 | 3.0 | 3.5 |
| 2½" | 63 | 2.0 | 2.4 | 3.0 | 3.5 |
| 3" | 75 | 1.8 | 2.2 | 3.0 | 3.5 |
| 4" | 110 | 2.2 | 2.7 | 3.2 | 3.8 |
| 5" | 125 | 2.5 | 3.0 | 3.2 | 3.8 |
| 6" | 160 | 3.2 | 3.8 | 4.0 | 4.6 |
| 8" | 200 | 3.9 | 4.5 | 4.9 | 5.6 |
| 10" | 250 | 4.9 | 5.6 | 6.2 | 7.1 |
| 12" | 315 | 6.2 | 7.1 | 7.7 | 8.7 |
| 14" | 355 | 7.0 | 8.0 | 8.7 | 9.8 |
| 16" | 400 | 7.9 | 8.9 | 9.8 | 11.0 |
| 18" | 450 | 8.8 | 9.9 | 11.0 | 12.3 |
| 20" | 500 | 9.8 | 11.0 | 12.3 | 13.8 |
| 24" | 630 | 12.3 | 13.8 | 15.4 | 17.2 |
UPVC UNDERGROUND SEWERAGE PIPES - BS EN 1401
| Nominal Size (Inches) | Nominal OD (mm) | Wall Thickness Specification | |||||
|---|---|---|---|---|---|---|---|
| SDR 51 (SN2) | SDR 41 (SN4) | SDR 34 (SN8) | |||||
| Min | Max | Min | Max | Min | Max | ||
| 4" | 110 | - | - | 3.2 | 3.8 | 3.2 | 3.8 |
| 5" | 125 | - | - | 3.2 | 3.8 | 3.7 | 4.3 |
| 6" | 160 | 3.2 | 3.8 | 4.0 | 4.6 | 4.7 | 5.4 |
| 8" | 200 | 3.9 | 4.5 | 4.9 | 5.6 | 5.9 | 6.7 |
| 10" | 250 | 4.9 | 5.6 | 6.2 | 7.1 | 7.3 | 8.3 |
| 12" | 315 | 6.2 | 7.1 | 7.7 | 8.7 | 9.2 | 10.4 |
| 14" | 355 | 7.0 | 8.0 | 8.7 | 9.8 | 10.4 | 11.7 |
| 16" | 400 | 7.9 | 8.9 | 9.8 | 11.0 | 11.7 | 13.1 |
| 18" | 450 | 8.8 | 9.9 | 11.0 | 12.3 | 13.2 | 14.8 |
| 20" | 500 | 9.8 | 11.0 | 12.3 | 13.8 | 14.6 | 16.3 |
| 24" | 630 | 12.3 | 13.8 | 15.4 | 17.2 | 18.4 | 20.5 |
UPVC PIPES - BS 3505 (SWR Applications)
| Nominal Size (Inches) | Mean Outside Diameter (mm) | Wall Thickness Specification | ||||
|---|---|---|---|---|---|---|
| Class-B (6 BAR) | Class-C (9 BAR) | |||||
| Min | Max | Min | Max | |||
| 2.0" | 60.2 | 60.5 | - | - | 2.5 | 3.0 |
| 2½" | 75.0 | 75.3 | - | - | 3.0 | 3.5 |
| 3.0" | 88.7 | 89.1 | 2.9 | 3.4 | 3.5 | 4.1 |
| 4.0" | 114.1 | 114.5 | 3.4 | 4.0 | 4.5 | 5.2 |
| 5.0" | 140.0 | 140.4 | 3.8 | 4.4 | 5.5 | 6.4 |
| 6.0" | 168.0 | 168.5 | 4.5 | 5.2 | 6.6 | 7.6 |
| 7.0" | 193.0 | 194.0 | 5.2 | 6.0 | 7.7 | 8.9 |
| 8.0" | 218.8 | 219.4 | 5.3 | 6.1 | 7.8 | 9.0 |
| 10.0" | 272.6 | 273.4 | 6.6 | 7.6 | 9.7 | 11.2 |
| 12.0" | 323.4 | 324.3 | 7.8 | 9.0 | 11.5 | 13.3 |
| 14.0" | 355.0 | 356.0 | 8.5 | 9.8 | 12.6 | 14.5 |
| 16.0" | 405.9 | 406.9 | 9.7 | 11.2 | 14.5 | 16.7 |
| 18.0" | 456.7 | 457.7 | 11.0 | 12.7 | 16.3 | 18.8 |
| 20.0" | 507.5 | 508.5 | 12.2 | 14.1 | 18.1 | 20.9 |
| 22.0" | 558.3 | 559.3 | 13.4 | 15.5 | 19.9 | 22.9 |
| 24.0" | 609.1 | 610.1 | 14.6 | 16.8 | 21.7 | 25.0 |
