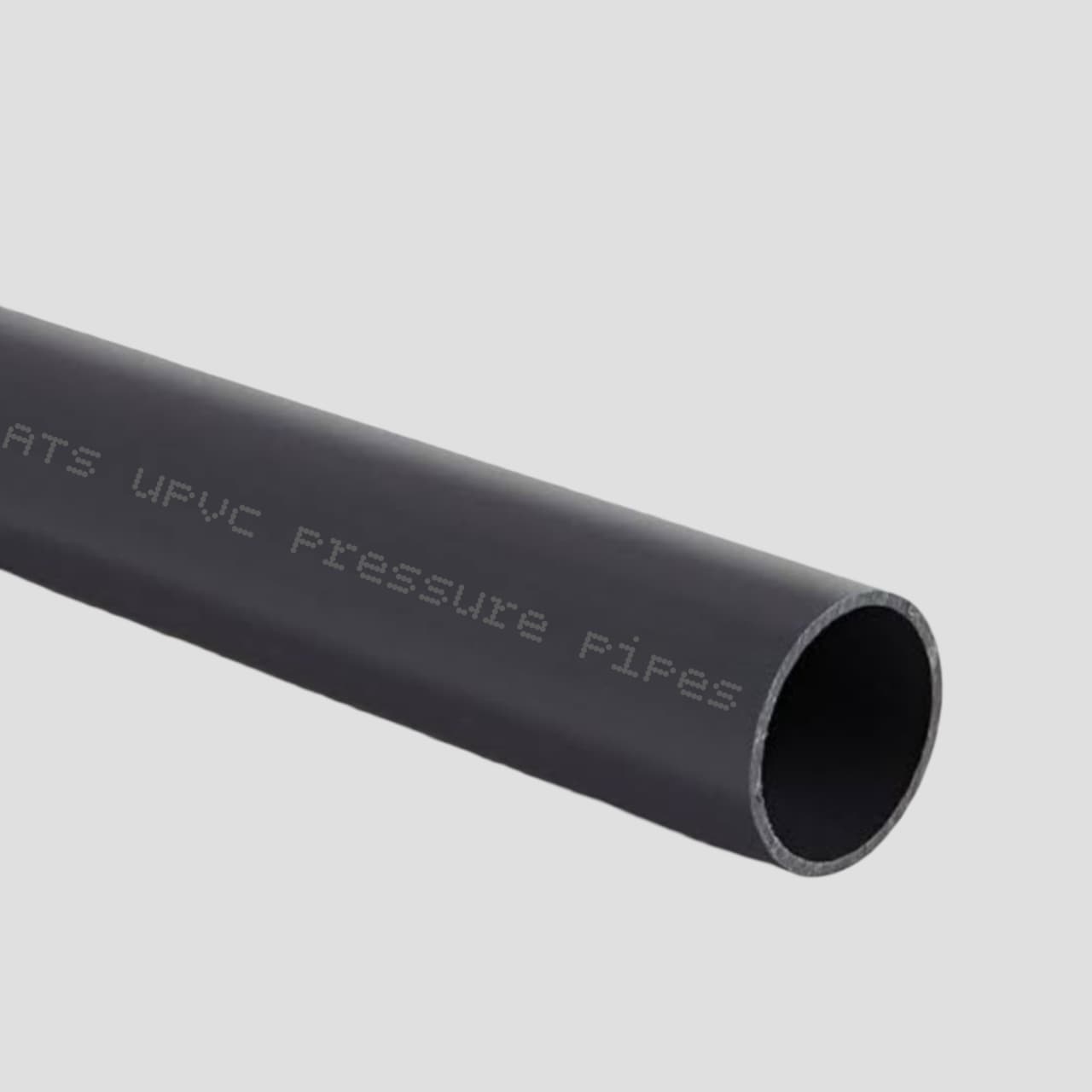

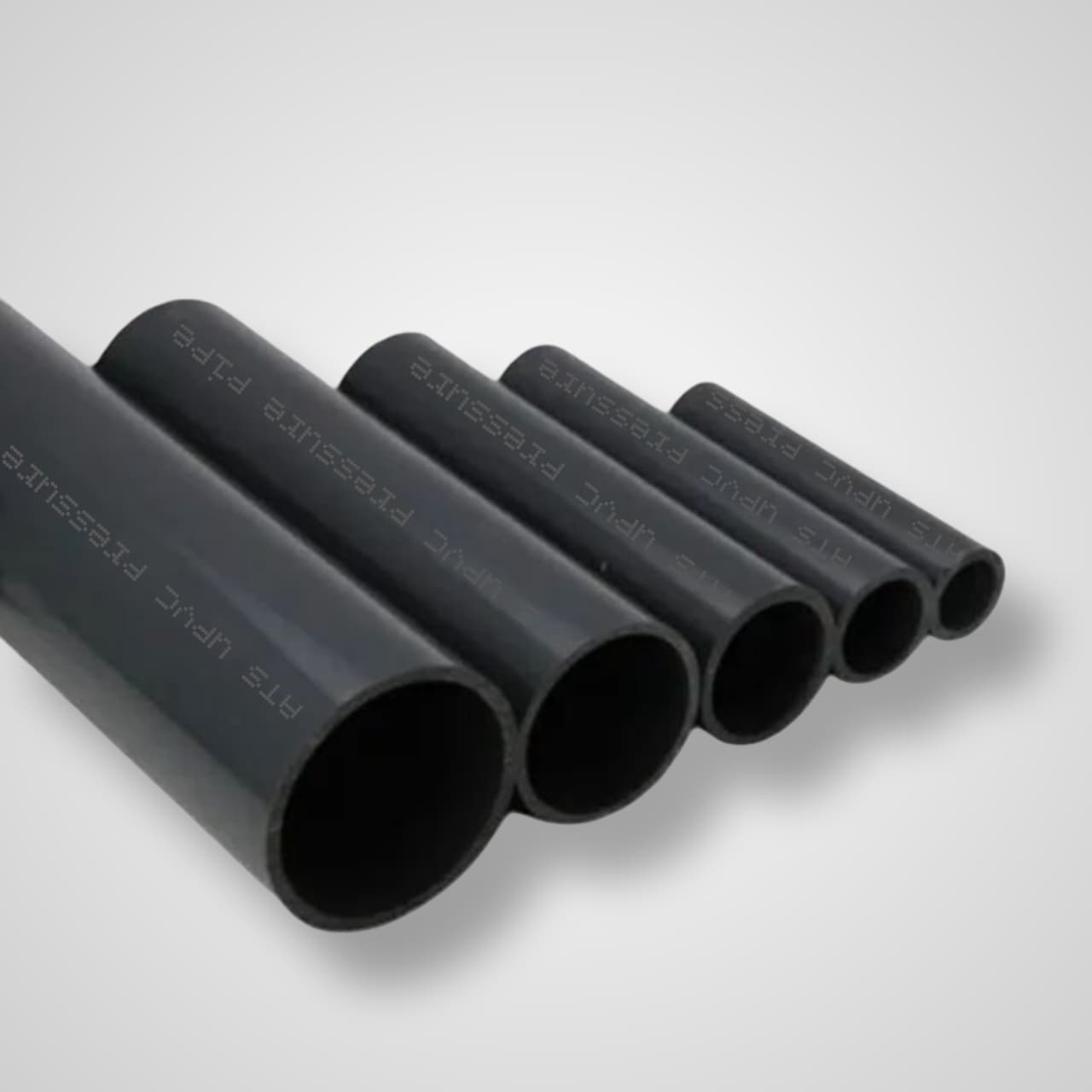

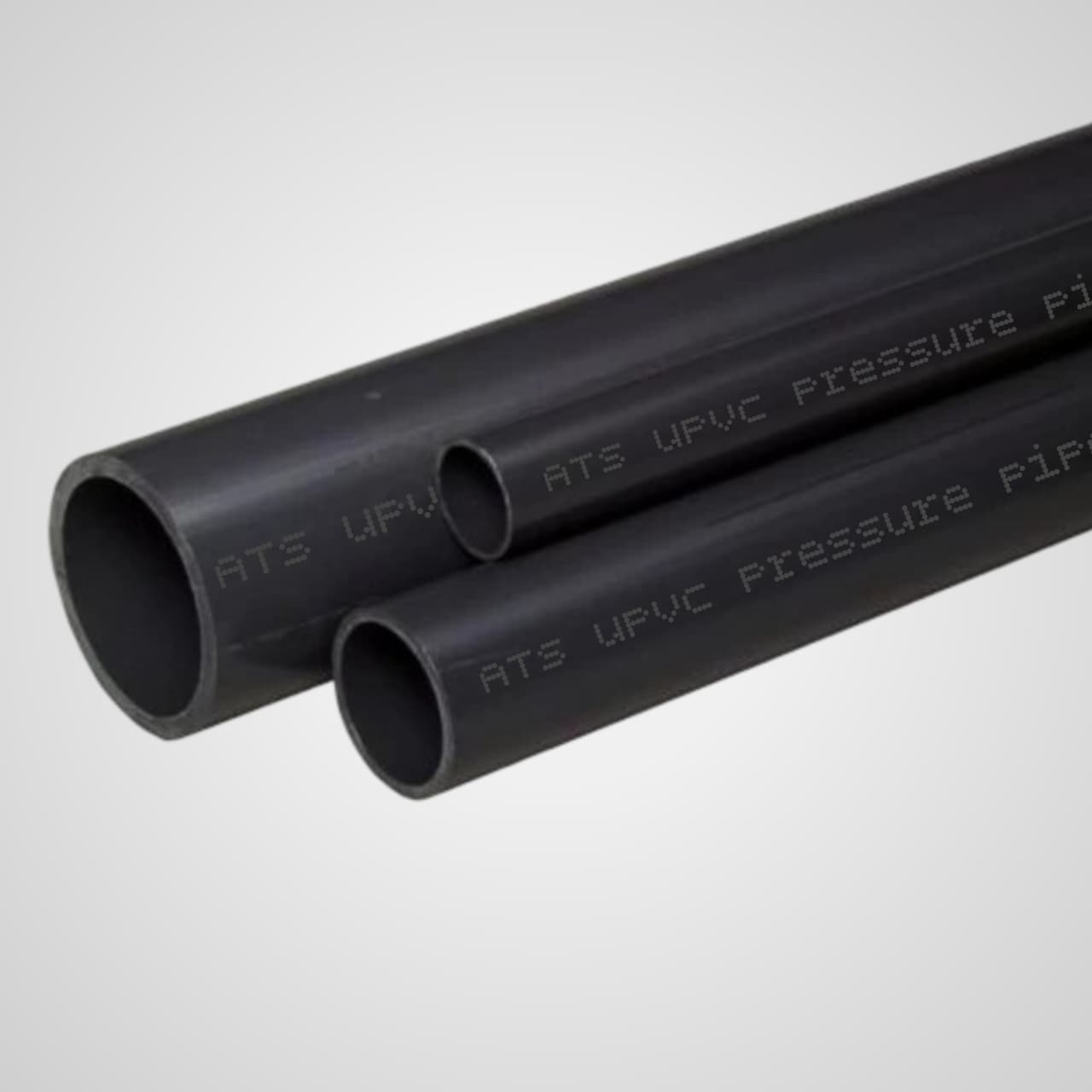

ATS uPVC Pressure Pipes
Reliable & Durable
Maximum Flow Rate
Corrosion Resistant
Description
Benefits
Applications
Installation

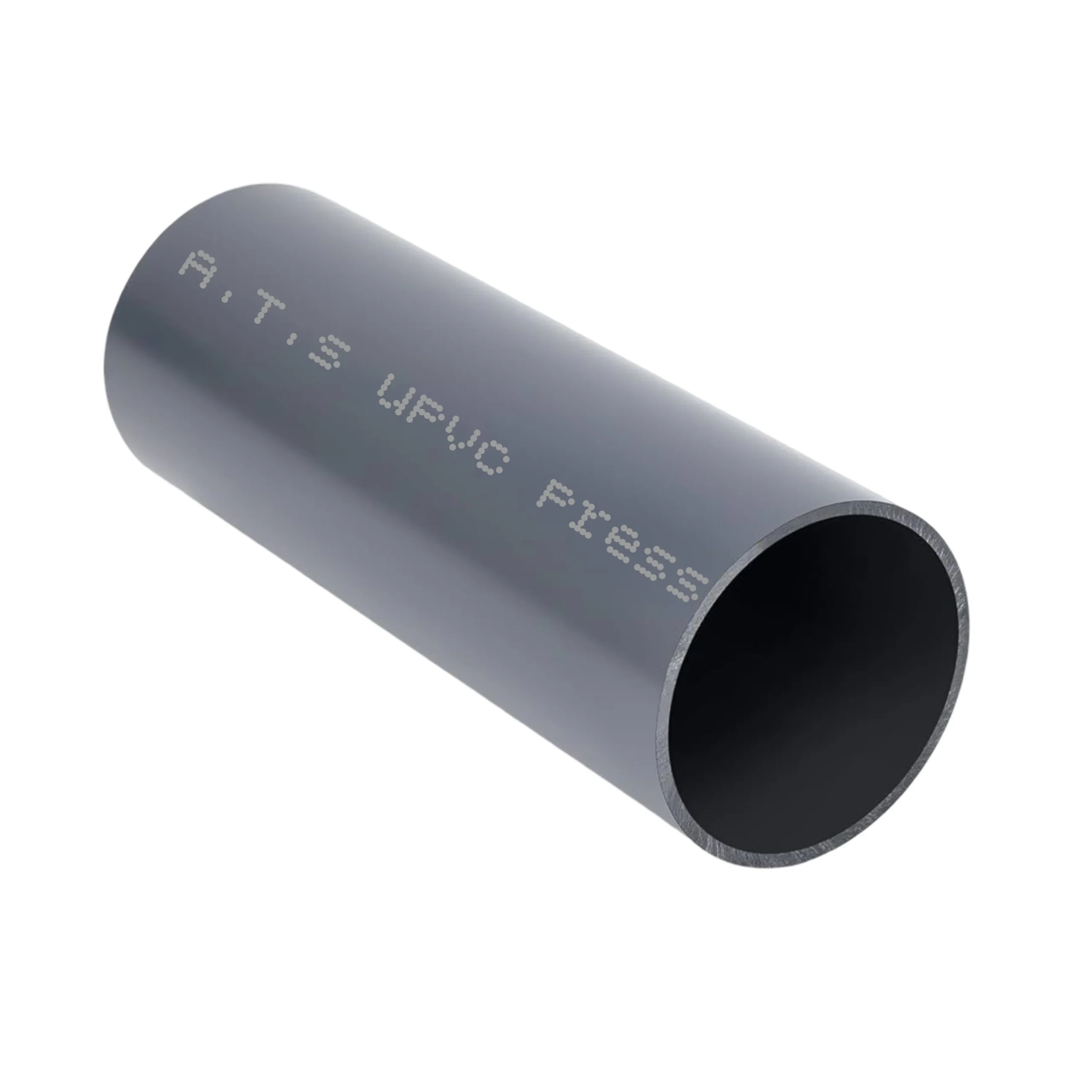

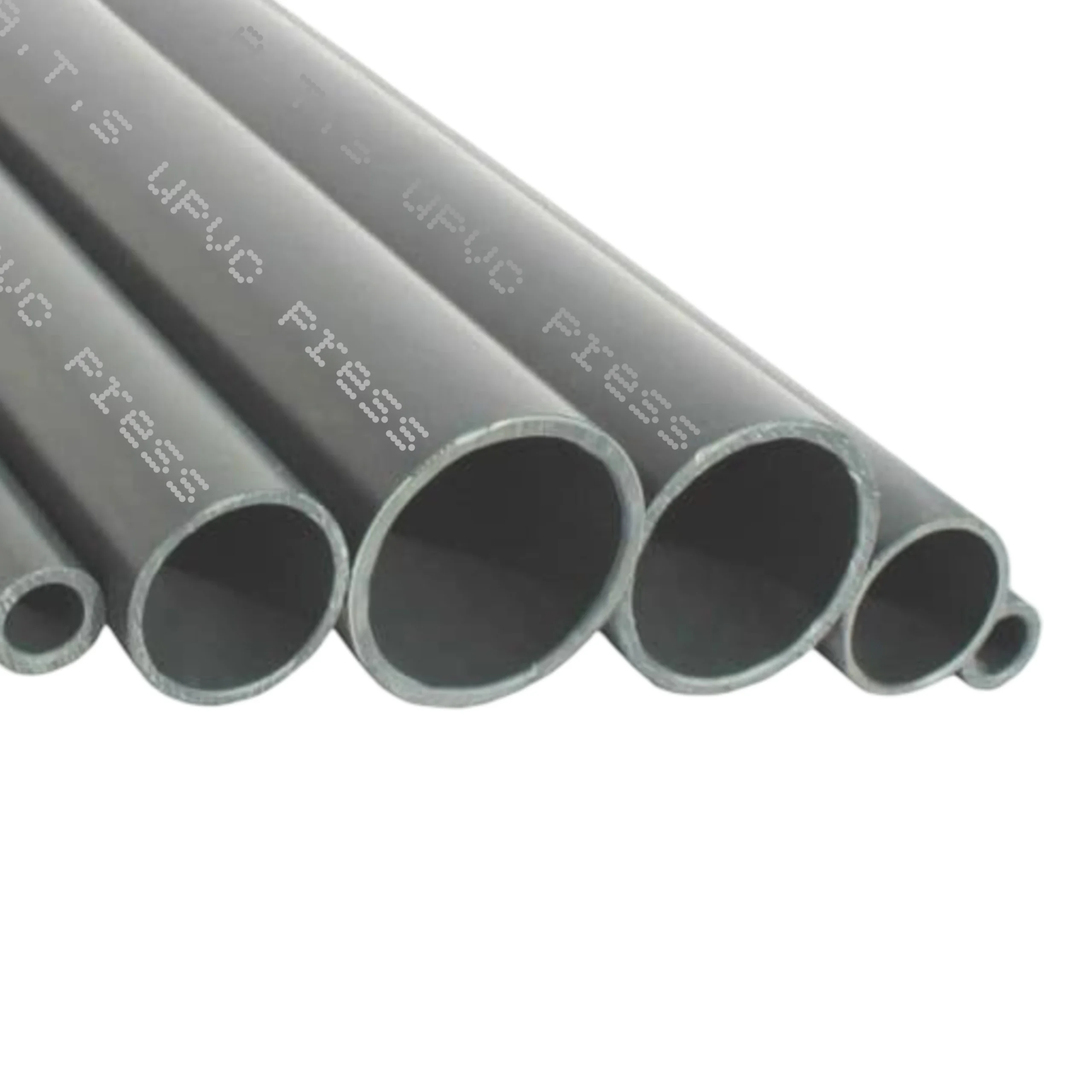

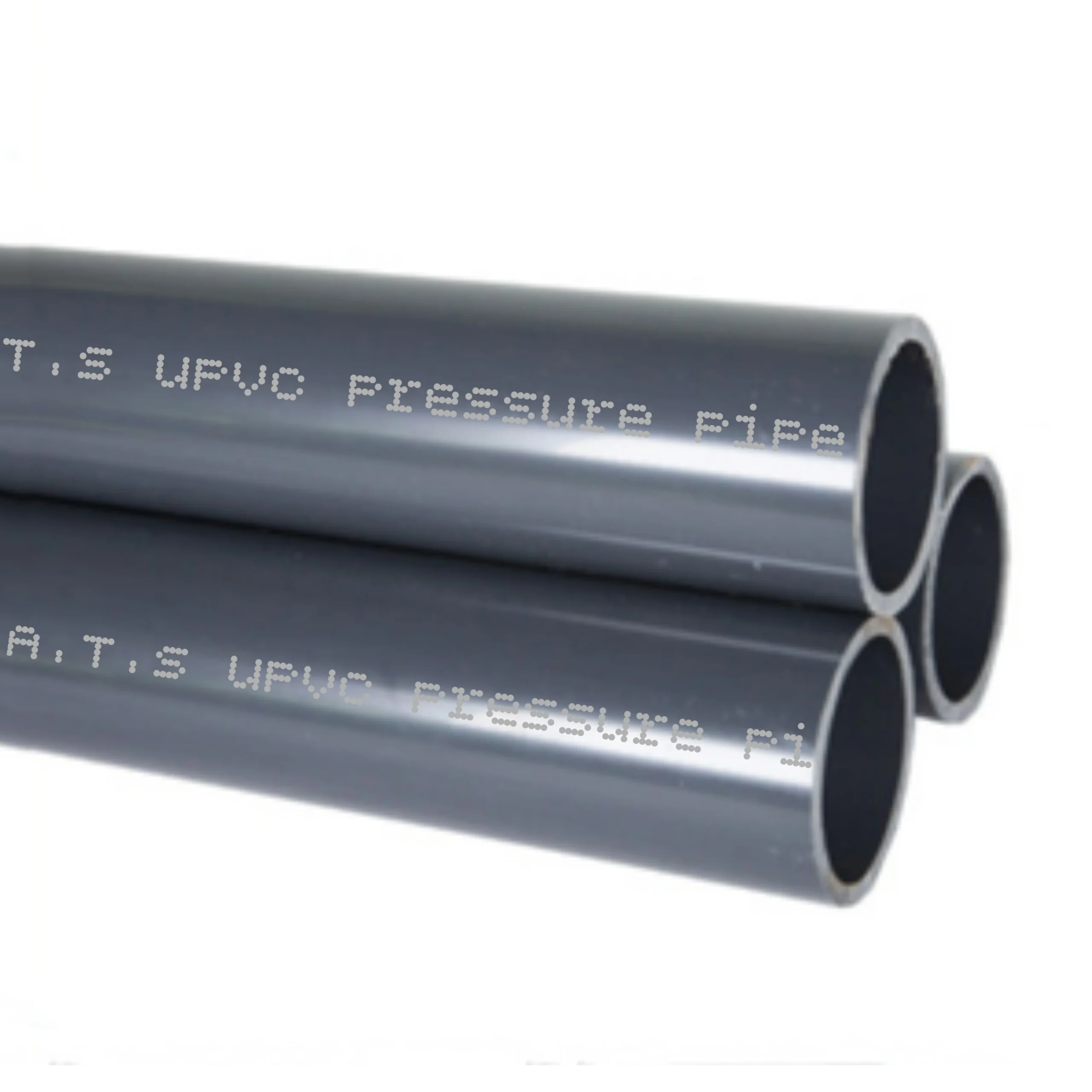

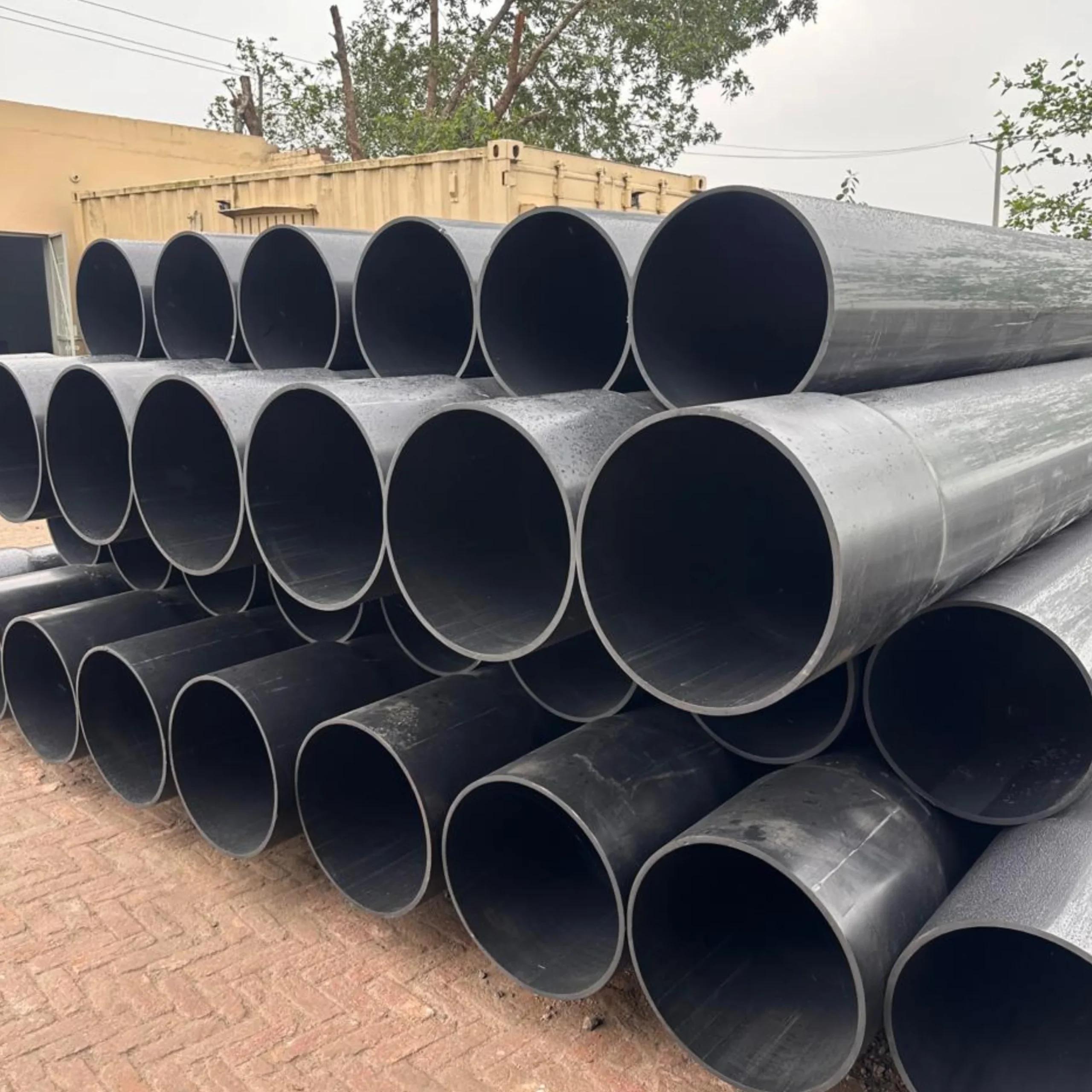

ATS PVC-U Pressure Pipes are engineered to meet the highest international quality standards, providing a reliable and long-lasting solution for modern infrastructure and residential needs.
BS 3505:1968 Compliance (Potable Water)
Our pipes are manufactured in strict conformity with BS 3505:1968, specifically designed for drinking water distribution. These pipes ensure zero contamination and are highly resistant to chemical erosion.
ASTM D-1785 Compliance (Schedule 40 & 80)
For high-pressure industrial applications, ATS offers pipes compliant with ASTM D-1785. These are built to withstand extreme internal pressure and are ideal for high-rise building plumbing and firefighting systems.
Key Advantages of ATS Pipes
- Corrosion Resistant: Immune to electrolytic and galvanic corrosion, ensuring no rust or scale buildup.
- Maintenance-Free: Offers a service life of over 50 years with minimal upkeep.
- Lightweight: Easy to transport and install, significantly reducing labor costs.
- Lead-Free: 100% safe for drinking water distribution.
- Fire Resistant: Self-extinguishing material that does not support combustion.
1. Agriculture: Empowering Sustainable Farming
Maximize your yield with irrigation solutions designed for the toughest terrains and deepest wells.
- High-Efficiency Water Supply: Minimize friction loss and maximize flow for farm-wide water transport.
- High-Pressure Tube-Wells: Robust casing and pressure pipes designed for deep-well extraction without the risk of collapse.
- Drip & Micro-Irrigation: Precision-engineered layouts for water-saving technology, ensuring every drop reaches the root.
- Horticulture & Greenhouses: Specialized UV-stabilized piping for controlled-climate irrigation and nutrient delivery.
2. Industrial: Built for Extreme Environments
When safety and chemical resistance are non-negotiable, industry leaders turn to ATS.
- Chemical Processing (ASTM D1785): Our corrosion-resistant Schedule 40 & 80 pipes are perfect for transporting aggressive chemicals safely.
- Pharmaceutical Grade: Contamination-free, hygienic piping systems that meet strict purity standards for lab and production environments.
- HVAC & Cooling Systems: Specialized lines for AC drainage and refrigeration cooling cycles, built to handle temperature fluctuations.
3. Municipal: Safe Water for Growing Communities
We provide the literal "veins" of the city, ensuring clean water reaches every home.
- Potable Water Networks (BS 3505): Our pipes are BS 3505 certified, ensuring they meet the highest global benchmarks for safe drinking water transport.
- High-Volume Distribution: Reliable, leak-proof mainlines designed to withstand the high-pressure demands of urban water grids.
Installation Techniques
We recommend Solvent Cement Welding for a permanent, leak-proof joint:
- Step 1: Cut the pipe square and remove all burrs from the edges.
- Step 2: Clean the pipe end and the fitting socket thoroughly.
- Step 3: Apply a thin coat of high-quality solvent cement to both surfaces.
- Step 4: Insert the pipe into the fitting and hold firmly for 30 seconds.
Dimensions
uPVC PRESSURE PIPES BS 3505:1968
| Normal Size (Inches) | Mean Outside Diameter (mm) | Class-B (6 BAR) | Class-C (9 BAR) | Class-D (12 BAR) | Class-E (15 BAR) | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Wall Thickness (mm) | Wall Thickness (mm) | Wall Thickness (mm) | Wall Thickness (mm) | |||||||
| Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | |
| 1/2" | 21.2 | 21.5 | - | - | - | - | - | - | 1.7 | 2.1 |
| 3/4" | 26.6 | 26.9 | - | - | - | - | - | - | 1.9 | 2.5 |
| 1.0" | 33.4 | 33.7 | - | - | - | - | - | - | 2.2 | 2.7 |
| 1¼" | 42.1 | 42.4 | - | - | - | - | 2.2 | 2.7 | 2.7 | 3.2 |
| 1½" | 48.1 | 48.4 | - | - | - | - | 2.5 | 3.0 | 3.1 | 3.7 |
| 2.0" | 60.2 | 60.5 | - | - | 2.5 | 3.0 | 3.1 | 3.7 | 3.9 | 4.5 |
| 2½" | 75.0 | 75.3 | - | - | 3.0 | 3.5 | 3.9 | 4.5 | 4.3 | 5.5 |
| 3.0" | 88.7 | 89.1 | 2.9 | 3.4 | 3.5 | 4.1 | 4.6 | 5.3 | 5.7 | 6.6 |
| 4.0" | 114.1 | 114.5 | 3.4 | 4.0 | 4.5 | 5.2 | 6.0 | 6.9 | 7.3 | 8.4 |
| 5.0" | 140.0 | 140.4 | 3.8 | 4.4 | 5.5 | 6.4 | 7.3 | 8.4 | 9.0 | 10.4 |
| 6.0" | 168.0 | 168.5 | 4.5 | 5.2 | 6.6 | 7.6 | 8.8 | 10.2 | 10.8 | 12.5 |
| 7.0" | 193.0 | 194.0 | 5.2 | 6.0 | 7.7 | 8.9 | 10.1 | 11.7 | 12.4 | 14.3 |
| 8.0" | 218.8 | 219.4 | 5.3 | 6.1 | 7.8 | 9.0 | 10.3 | 11.9 | 12.6 | 14.5 |
| 10.0" | 272.6 | 273.4 | 6.6 | 7.6 | 9.7 | 11.2 | 11.8 | 14.8 | 15.7 | 18.1 |
| 12.0" | 323.4 | 324.3 | 7.8 | 9.0 | 11.5 | 13.3 | 15.2 | 17.5 | 18.7 | 21.6 |
| 14.0" | 355.0 | 356.0 | 8.5 | 9.8 | 12.6 | 14.5 | 16.7 | 19.2 | 20.5 | 23.6 |
| 16.0" | 405.9 | 406.9 | 9.7 | 11.2 | 14.5 | 16.7 | 19.0 | 21.9 | 23.4 | 27.0 |
| 18.0" | 456.7 | 457.7 | 11.0 | 12.7 | 16.3 | 18.8 | 21.4 | 24.6 | - | - |
| 20.0" | 507.5 | 508.5 | 12.2 | 14.1 | 18.1 | 20.9 | - | - | - | - |
| 22.0" | 558.3 | 559.3 | 13.4 | 15.5 | 19.9 | 22.9 | - | - | - | - |
| 24.0" | 609.1 | 610.1 | 14.6 | 16.8 | 21.7 | 25.0 | - | - | - | - |
PVC-U PRESSURE PIPES ASTM D-1785 (SCHEDULE 40)
| Nominal Size (Inches) | Mean Outside Diameter (mm) | Schedule 40 | |||
|---|---|---|---|---|---|
| Wall Thickness (mm) | Working Pressure PSI @ 23°C | ||||
| Min | Max | Min | Max | ||
| 1/2" | 21.34 | 21.34 | 2.77 | 3.28 | 600 |
| 3/4" | 26.67 | 26.67 | 2.87 | 3.38 | 480 |
| 1" | 33.4 | 33.4 | 3.38 | 3.89 | 450 |
| 1-1/4" | 42.16 | 42.16 | 3.56 | 4.07 | 370 |
| 1-1/2" | 48.28 | 48.28 | 3.68 | 4.19 | 330 |
| 2" | 60.32 | 60.32 | 3.91 | 4.42 | 280 |
| 3" | 88.9 | 88.9 | 5.49 | 6.15 | 260 |
| 4" | 114.3 | 114.3 | 6.02 | 6.73 | 220 |
| 5" | 141.3 | 141.3 | 6.55 | 7.34 | 198 |
| 6" | 168.28 | 168.28 | 7.11 | 7.97 | 180 |
| 8" | 219.08 | 219.46 | 8.18 | 9.17 | 160 |
| 10" | 273.05 | 273.43 | 9.27 | 10.39 | 140 |
| 12" | 323.85 | 324.23 | 10.31 | 11.55 | 130 |
| 14" | 355.6 | 355.98 | 11.1 | 12.45 | 130 |
| 16" | 406.4 | 406.88 | 12.7 | 14.22 | 130 |
PVC-U PRESSURE PIPES ASTM D-1785 (SCHEDULE 80)
| Nominal Size (Inches) | Mean Outside Diameter (mm) | Schedule 80 | |||
|---|---|---|---|---|---|
| Wall Thickness (mm) | Working Pressure PSI @ 23°C | ||||
| Min | Max | Min | Max | ||
| 1/2" | 21.34 | 21.34 | 3.73 | 4.24 | 850 |
| 3/4" | 26.67 | 26.67 | 3.91 | 4.42 | 690 |
| 1" | 33.4 | 33.4 | 4.55 | 5.08 | 630 |
| 1-1/4" | 42.16 | 42.16 | 4.85 | 5.43 | 520 |
| 1-1/2" | 48.28 | 48.28 | 5.08 | 5.69 | 470 |
| 2" | 60.32 | 60.32 | 5.54 | 6.2 | 400 |
| 3" | 88.9 | 88.9 | 7.62 | 8.53 | 370 |
| 4" | 114.3 | 114.3 | 8.56 | 9.58 | 320 |
| 5" | 141.3 | 141.3 | 9.52 | 10.66 | 290 |
| 6" | 168.28 | 168.28 | 10.97 | 12.29 | 280 |
| 8" | 219.08 | 219.46 | 12.7 | 14.22 | 250 |
| 10" | 273.05 | 273.43 | 15.06 | 16.86 | 230 |
| 12" | 323.85 | 324.23 | 17.45 | 20.25 | 230 |
| 14" | 355.6 | 355.98 | 19.06 | 21.35 | 220 |
| 16" | 406.4 | 406.88 | 21.41 | 23.98 | 220 |
